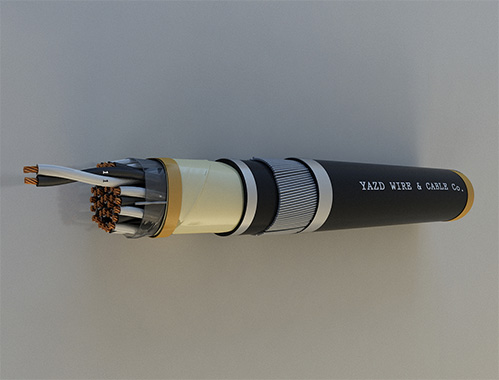

Armored-overall screen cables

Armored-overall screen cables
RE-Y(st)YRY, RE-2Y(st)YRY, RE-2X(st)YRY, RE-Y(st)YQY, RE-2Y(st)YQY, RE-2X(st)YQY
Applications:
• Instrumentation cables are used in data processing and process control and are suitable for installations in open spaces and for underground laying. For digital signals and solenoids , overall screened type and for analogue signals between junction boxes and electrical room/control building , individual and overall screened type may be applied.
• The overall screening of the pairs/cores protect it against outer electrostatic interference fields.
• Armored types would be able to bear external mechanical forces.

Product Description:
In the voltage designation of U0/U(Um) , the rated voltages of the cables considered in this standard are as follows: U0/U(Um)=300/500(600) V a.c.

U0 is the rated power frequency voltage between conductor and earth or metallic covering.
U is the rated power frequency voltage between conductors.
Um is the maximum value of the "highest system voltage" for which the equipment may be used.
  • Construction features:
    - Size: Up to 2.5 sq.mm
    - No. of cores/Pairs: Up to 61 cores and up to 50 pairs
    - Conductor material: Plain or tinned copper
    - Conductor type: Solid (Class1)/Stranded(class2)/Fine stranded (Class 5) - Round
    - Insulation: Cross-linked polyethylene (XLPE) , polyethylene (PE) or Polyvinyl chloride ( PVC)
    - Collective screen: Laminated screening tape comprise of aluminum bonded to polyester plus one or more tinned annealed copper wires applied over the screened pairs or laid up cores.
    - Inner sheath: Polyvinyl chloride (PVC) or polyethylene ( PE)
    - Armor: Galvanized steel wire, tape or braided armor
    - Sheath: Polyvinyl chloride (PVC) or Polyethylene (PE)
    Other features:
    - Ultra violet (UV) resistant colored outer sheath
    - Low smoke and fume (LSF)
    - Halogen free and flame retardant (HFFR)
    - Oil & hydrocarbon resistant
    - Fire resistant
    - Vermin proof

    Standards: EN50288-7,PAS 5308 , BS 5308


    Note: Insulated communication wire can be applied on request.

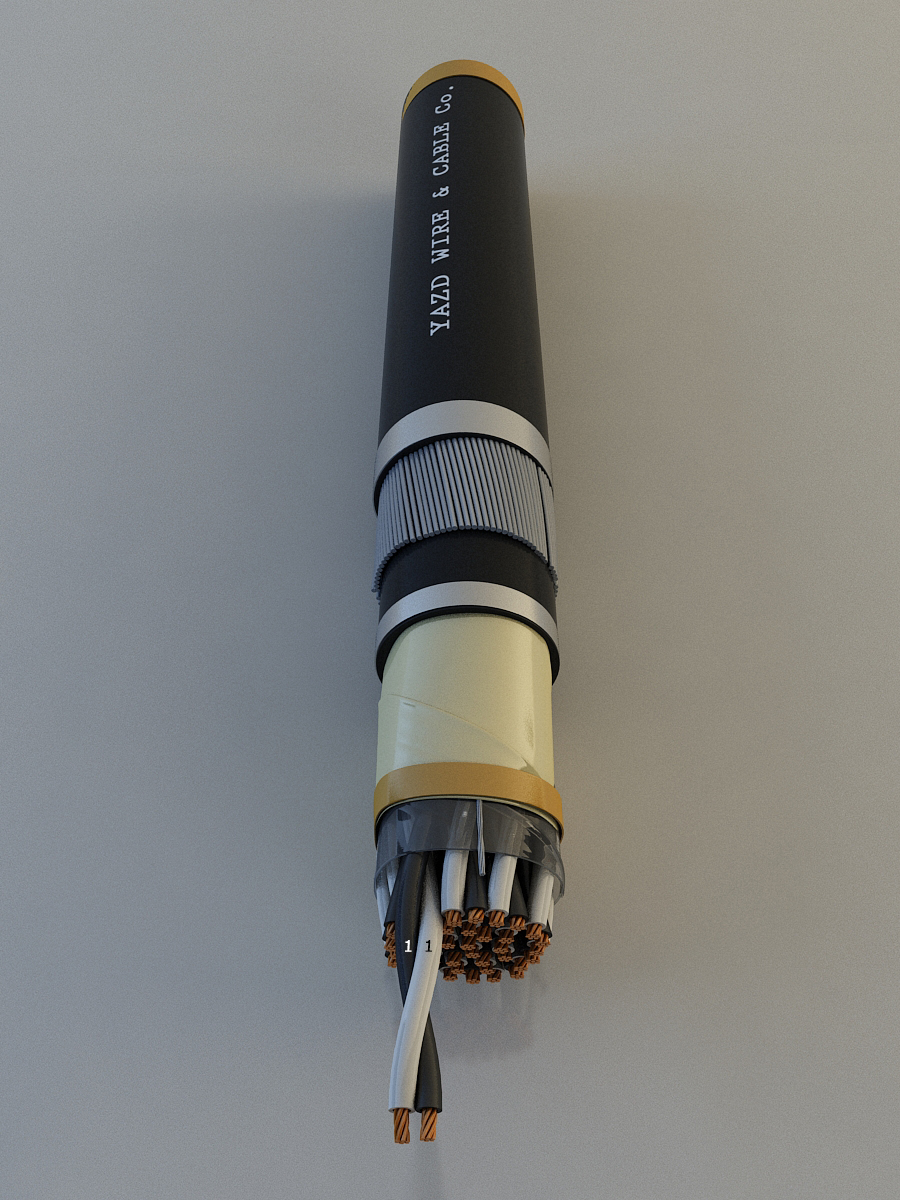

    • Armored-overall screen cables

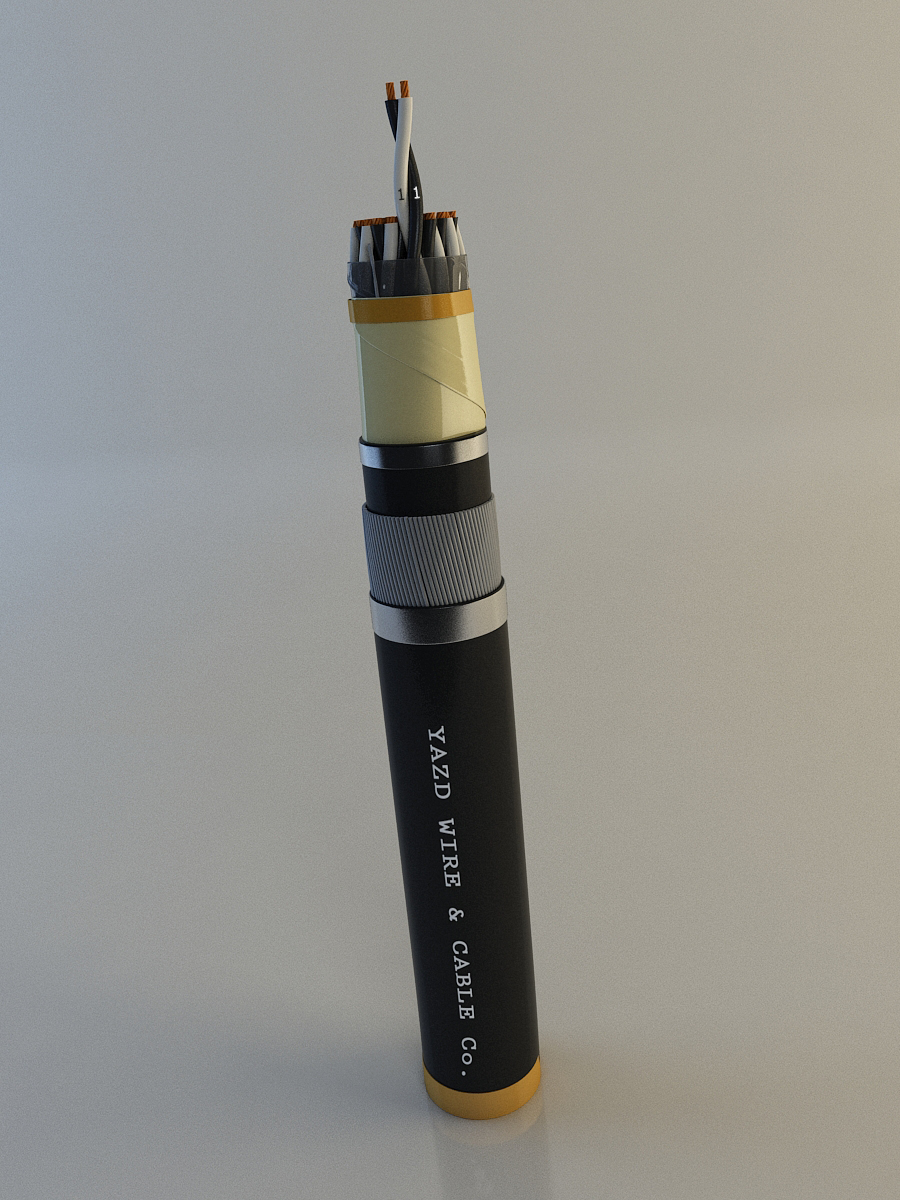

    • Armored-overall screen cables

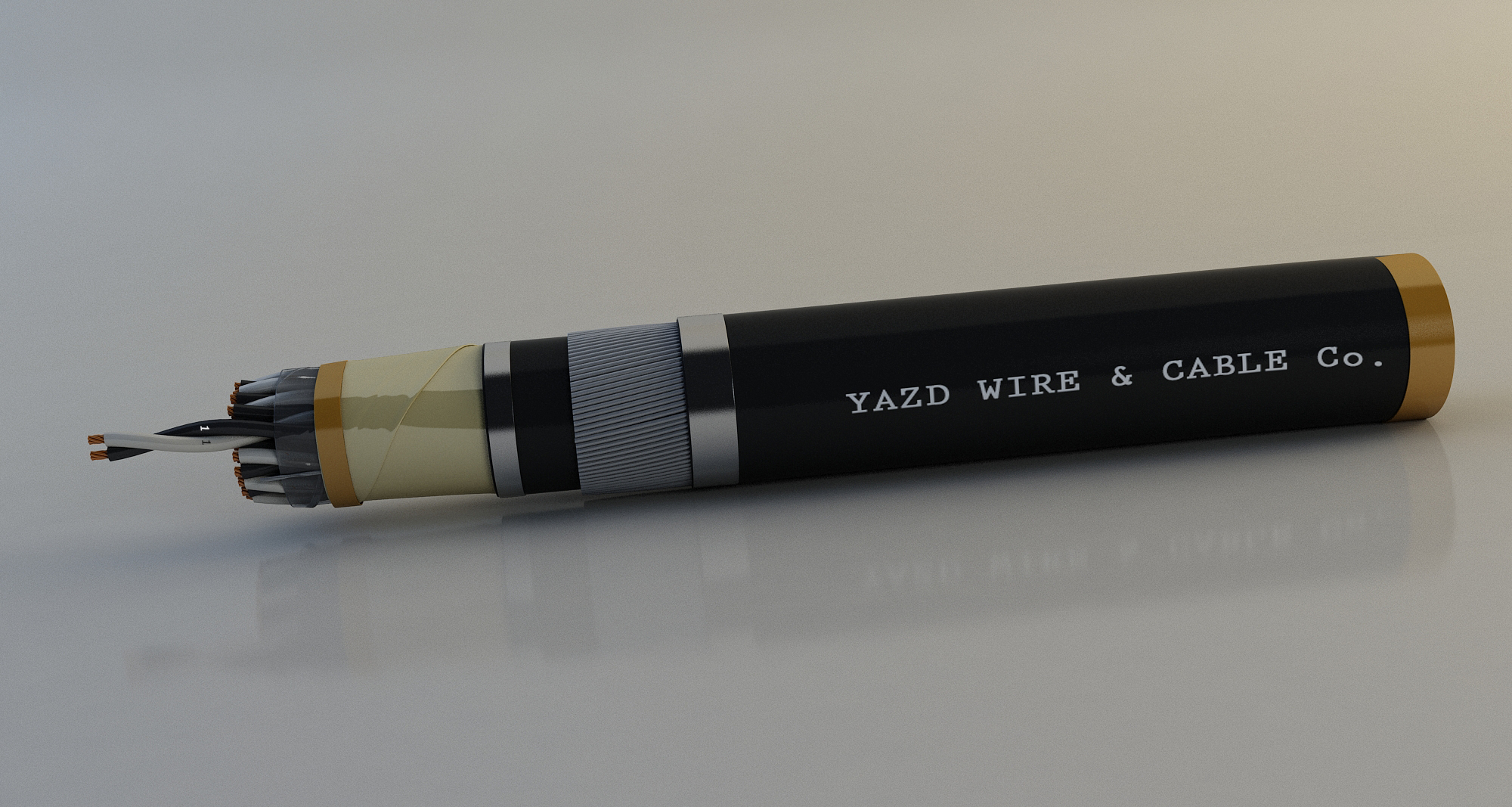

    • Armored-overall screen cables
